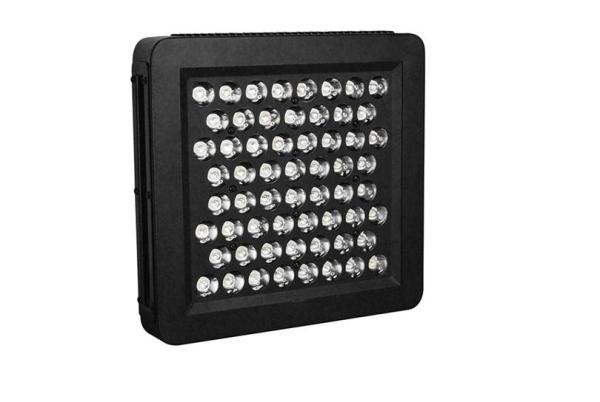

Top LED grow lights

Unique innovative ideas:
I. Double cages structural heat dissipation design,better cooling performance
The double cages structural design change the heat dissipation mode of the traditional LED grow light, divide the inside of the lamp to tow parts, and form two heat-dissipation cages, cut off the internal thermal cycle effectively and reach the best cooling performance.
Use the unique air-out design and open air exhaust in the two sides of the lamp, remove the high temperature air rapidly, ensure the light body operation in a low-temperature environment.
II. Prevent drippage water design
The lid of the light is with sloping ends and 5°angled holes to prevent the light from the damaging of drippage and dust.
III. High quality 3W LED+700mAcurrent=The top performance
700 mA is the best drive current for 3W LEDs,runing LEDs with possibly high current can take full advantage of LEDs, making your initial investment in LED devices to be well worth it.However, LEDs and LED drivers should be of superior quality as so to undertake the high electric current, besides the entire equipment should be good enough in heat dissipating to bear all the heat emitted by 3w leds.Selects the finest LEDs and drivers to ensure the stable performance as well as the long life span of the fixtures,our three-year warranty policy proves our confidence in products.
IV. Modularity design
Modularity design, each part interconnect by the male female plug directly, very easy for repairment and maintenance, only few steps to assemble up the whole fixture.
V. RTPM intelligent control system(Remote,Dimming,Timing and Temperature control)
RTPM is a multifunction intelligent system, including remote, dimming, timing, custom temperature control and mult-unit chaining function. In order to meet the growth demand of all kinds plants, the users can choose various different lighting effect scheme.
1,Remote-controlled, dimming and timing
There are three controllable circuits in the light, the brightness value is 0%-100%, in order to add and reduce the adjustable brightness , 1% or 10% is available, also, 1% is allowed to adjust the brightness in the single circuit. Four time bucket can be set on brightness in each circuit. In the right system time setting circumatances, when the time reach timing time bucket, the hole light will turn into the timing preinstall brightness automatic.,24 hours continuous cycle.(Please see the remote operation instruction manual )
2,Temperature control and protection
When the heat sink temperature over 65℃, the intelligent temperature control will cut off the power supply system automatic. The system will outo star when the temperature cooling to 50°.
3,Data memory
The brightness and timing setting will auto-save after setting 45 seconds, the lamp will enter the setting brightness condition last time when it electrify and get to work next time. The system time will keep the clock continuous operation about 3 months after the lamp completely without electricity, the built-in superbattery will be full charged within 20 seconds. Also, it without needing battery replacements.
Specification
Name: 120W LED Grow Light Actual power: 120W
Model: CDL-G-ZA120W-B LED Qty: 60pcs*3W
Input voltage: AC100~240V LED color: Red(630nm)/Blue(460nm)
Output voltage: DC70~90V Lifespan: 50,000 Hours
Input current: 690mA Brightness value: 0%~100%
Low voltage impulse: 400us PF: 0.9
Control system: RTPM Working frequency: 50~60Hz
Circuits: 2 Working environment: -20~40℃,45%~95%RH
Product size: 288*280*75mm N.W.: 3.7kg
Inner carton size: 346*346*150mm G.W.(Inner carton ): 4.4kg
Outer carton size: 612*358*362mm/4pcs G.W.(Outer carton ): 18.6kg
Standard configuration: LED Light x1,Remote control x1,Power line x1,Chaining x2,Remote control operating instruction x1
Remarks :The above parameter is based on Red:Blue=8:1, for reference only
Illumination and PAR value data sheet
Height(cm) 20 40 60 80 100 150 200
PAR (umol m-2s-l) 2050 750 380 200 130 60 35
Irradiation Area(m^2) 0.2 0.45 0.8 1.35 2 3.5 5.8
(Remarks: the irradiation area is base on PAR value>10 )
Characteristics:
1. Changed mesh vents to hollow out, increase the air displacement and the cooling capacity per unit time, more convenient for carrying.
2. Using built-in quiet fans, and use the shutter in the wind, induced draft from all sides, very low noise, waterproof and dustproof, waterproof grade can reach IP32.
3. Special structure make the heat dissipation effect very good, the temperature of the LEDs' feet dropped below 50°, lowest bad loss rate of the lamp bead.
4. Use advanced isolation power supply and soft start protection technology, to prevent the high voltage when turn on the light from damaging the lamp body.
Introduction:
1. Use high quality LED lighting source, the lifespan is up to 50000 hours.
2. Replace 3~5 times of the HPSL power, 80% electric energy saving than the tradition HPSL and MHL.
3. High lighting effect, 90% of the light will be absorbed by the aquatic plant, but to the traditional HPSL and MHL, the lighting effect is just 8%~10%.
4. Input cooling system, well solve the heat sink problem.
5. The input voltage is AC100V~240V,suitable for the world standard. Built-in power supply. No need other equipment, just access AC100~240V voltage from the plug, the lamp will be working smoothly, don't need the reflector and ballast either.
6. The lighting area and the height are changeable according to different plants and environments, the same as the parameter.
7. Environment-friendly, no mercury and other harmful heavy metal.
8. Customers can choose the different ratios, Our suggestion is red: blue=8:1 or 7:2, red: blue: orange=7:1:1. The suggested wavelength of the red is 620-630nm, the blue is 460-470nm and the orange is 610-615nm. With the mixture of red ,blue, orange, yellow, UV, IR and white lights, provide the plants needed nutrient light. The red LEDs are good for sprouting and flowering, while the blue LEDs promote the growth, at the same time, customers also can choose the more suitable wavelength and LED colors.
Application:
Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.
Attention:
1. In order to save energy, please turn off the power if not use the lamp in a long time.
2. Do not use the lights in dripping water or anywhere where they will get wet, water and electricity can be a dangerous mixture.
3. The working environment for the light is -20~40℃,45%RH~90%RH.
4. To protect the light, Pls cut off the power when there is a lightning strike.
5. Don’t touch or move when the light working.
